CHXSJ Series

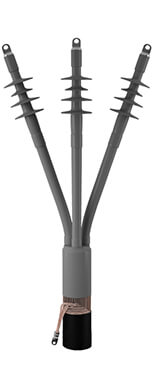

Cold Shrink Cable Terminations suitable for 1 & 3 Core Polymeric Insulated (XLPE/ EPR) Cables up to 36kV

Product Code: CCIT/ CCOT

Compaq Cold Shrink Cable kits are designed for jointing either single or three core cables designed with polymeric (XLPE or EPR) insulation and can be used with both compression and mechanical type connectors.

Download Datasheet

Salient Features

  • One Piece Design with integrated stress control arrangements.
  • Excellent performance & reliability
  • Silicon Rubber material for excellent electrical insulation and weathering properties
  • Reliable operations, proven in practice
  • In compliance with IEC-60502-4 / IS:13573
Technical Parameters:
Voltage Class 12kV 17.5kV 24kV 36kV
Voltage Rating U0/U (Um) kV 6.35/11 (12) 8.7/15 (17.5) 12.7/22 (24) 19/33 (36)
AC Voltage Withstand , 1 min (kV) 25.5 35 51 76
AC Voltage Withstand , 5 min (kV) 28.5 39 57 85.5
DC Voltage Withstand , 15min (kV) 38 52 76 114
Partial Discharge at 2U0 (pC) <10 <10 <10 <10
Basic Impulse Level (BIL) kV 95 95 125 194
