CHXSJ Series

Heat Shrink Straight through Joint suitable for 1 Core Aerial Bunched (ABC) cables up to 36kV

Product Code: CHJ AB

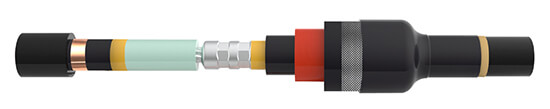

Compaq CHJ Cable Joint kits are designed for jointing single core Aerial Bunched cables and can be used with both compression and mechanical type connectors.

Download Datasheet

Salient Features

  • Field proven technology
  • Fully designed & tested in accordance to HD629.2-S1, IEC 60502, IS 13573
  • Wide range and possible to tailor for any cable type
  • Excellent performance & reliability
  • Suitable for use with mechanical lugs (available as an option)
  • Reliable operations, proven in practice
Technical Parameters:
Voltage Class 7.2KV 12KV 17.5KV 24KV 36KV
Voltage Rating U0/U (Um) kV 3.8/6.6 (7.2) 6.35/11 (12) 8.7/15 (17.5) 12.7/22 (24) 19/33 (36)
AC Voltage Withstand, 1 min (kV) 15 25.5 35 51 76
AC Voltage Withstand, 5 min (kV) 17 28.5 39 57 85.5
DC Voltage Withstand, 15min (kV) 23 38 52 76 114
Partial Discharge at 2U0 (pC) <2 <2 <2 <2 <2
Basic Impulse Level (BIL) kV 60 95 95 125 194
