CHXSJ Series

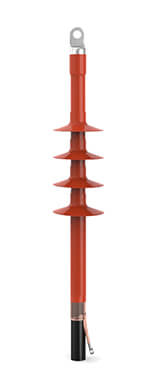

Heat Shrink Cable Terminations suitable for 1 Core XLPE/ EPR insulated cables up to 36kV

Product Code: CHIT/ CHOT X

Compaq Heat Shrink Cable Termination Kits are suitable for both Indoor (Cable box, switchgear, transformer, and motor type) and Outdoor (Pole mounted) terminating of single core cables and can be used with both compression and mechanical type Lugs

Download Datasheet

Salient Features

  • Field proven technology
  • Wide range and possible to tailor for any cable type
  • Excellent performance & reliability
  • Unlimited shelf life
  • Reliable operations, proven in practice
Technical Parameters:
Voltage Class 7.2KV 12KV 17.5KV 24KV 36KV
Voltage Rating U0/U (Um) kV 3.8/6.6 (7.2) 6.35/11 (12) 8.7/15 (17.5) 12.7/22 (24) 19/33 (36)
AC Voltage Withstand, 1 min (kV) 15 25.5 35 51 76
AC Voltage Withstand, 5 min (kV) 17 28.5 39 57 85.5
DC Voltage Withstand, 15min (kV) 23 38 52 76 114
Partial Discharge at 2U0 (pC) <2 <2 <2 <2 <2
Basic Impulse Level (BIL) kV 60 95 95 125 194
