CHXSJ Series

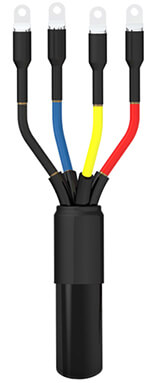

Heat Shrink Cable Terminations for Polymeric Insulated (XLPE, PVC, EPR) Cables up to 1Kv

Product Code: CHLT

Compaq CHLT termination kits are suitable for terminating low voltage cables with XLPE, PVC or EPR Insulations up to 1000 V, and can be used with both compression and mechanical type Lugs.

Download Datasheet

Salient Features

  • Field proven technology
  • Fully designed & tested in accordance to IS 13573, IEC 60502
  • Wide range and possible to tailor for any cable type
  • Excellent performance & reliability
  • Suitable for use with mechanical lugs (available as an option)
  • Reliable operations, proven in practice
Kits suitable for 1 to 4 core cables
Cable Range (mm2) Kit Code
1.5 – 2.5 CHLT/X/1.5-2.5/4
4 – 6 CHLT/X/4-6/4
10 – 16 CHLT/X/10-16/4
25 – 50 CHLT/X/25 – 50/4
70 – 120 CHLT/X/70 – 120/4
150 – 185 CHLT/X/150 – 185/4
240 - 300 CHLT/X/240 - 300/4
