CHXSJ Series

Heat Shrink Trifurcating Cable joint for XLPE/EPR/PVC insulated cables up to 36kV

Product Code: CHTXJ

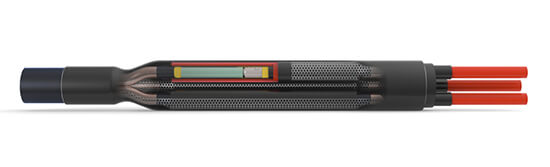

Compaq CHTXJ Joint kits are designed for joining three Core polymeric (XLPE/EPR) insulated cables to three individual single core cables. They can be used with both compression and mechanical type connectors.

Download Datasheet

Salient Features

  • Field proven technology
  • Simple installation, No special tools required
  • Wide range and possible to tailor for any cable type
  • Excellent performance & reliability
  • Reliable operations, proven in practice
Technical Parameters:
Voltage Class 7.2KV 12KV 17.5KV 24KV 36KV
Voltage Rating U0/U (Um) kV 3.8/6.6 (7.2) 6.35/11 (12) 8.7/15 (17.5) 12.7/22 (24) 19/33 (36)
AC Voltage Withstand, 1 min (kV) 15 25.5 35 51 76
AC Voltage Withstand, 5 min (kV) 17 28.5 39 57 85.5
DC Voltage Withstand, 15min (kV) 23 38 52 76 114
Partial Discharge at 2U0 (pC) <2 <2 <2 <2 <2
Basic Impulse Level (BIL) kV 60 95 95 125 194
