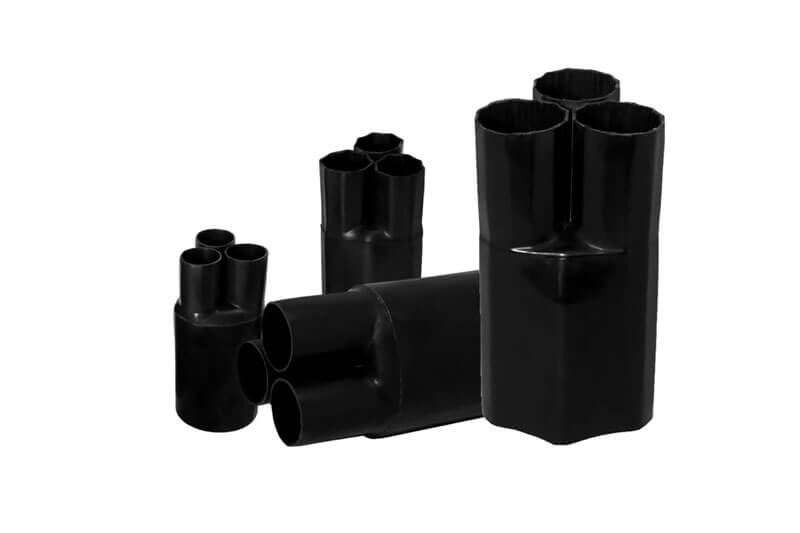

Heat Shrink semi conductive cable breakouts

•

• Product Code: CCB

  The conductive breakouts provide a semi conductive screen and sealing over the crutch of multi-core cables. The mastic sealant provides a watertight environmental seal to the cable. The conductive cable breakouts are normally used as an integral part of 3 core cable terminations up to 36 kV and also in 3 core cable joints up to 36 kV. The breakouts are made from high quality thermally stabilized cross-linked semi conductive polyolefin material. The breakouts are internally coated with water resistant red mastic.

  Features & Benefits

  • UV and weather resistance
  • Continuous Operating Temperature: -55°C to 100°C
  • Resistant to common fluids and solvents
  • Thermoplastic adhesive inside provides complete environmental protection & insulation
  • Product Datasheet
