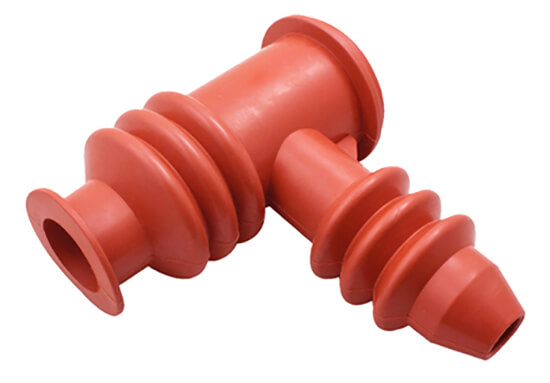

Insulating Terminal Protector Boots up to 24kV

•

• Compaq Terminal protector boots are designed to be used in cable entry boxes with all types of Compaq Terminations. The elastomeric housing has excellent track and erosion resistance, dielectric properties and environmental resistance, giving superb performance in areas of high humidity and electrical stress. The Cable Terminal Protector is a unique insulating system for providing phase to phase and phase to ground insulation to power cable terminals where these terminations need to be installed in very compact areas like motor terminal boxes, ring main units having bushing type C. The Boots are easy to install and is designed for disconnection and reusability. It also provides complete sealing of the Cable, cable lug, and the bushing and thus prevents flash-over due to rodent and high humidity.

  Features & Benefits

  • For Voltage Range 6/10(12)kV up to 12/20(24)kV
  • Quick and easy to install, Works in combination with all Compaq cable terminations
  • Can easily be removed and reinstalled without the need for additional material or tooling
  • One size is suitable for all cable types from 35 -300mm2
  • The adapters are water-tight and guarantee uninterrupted operation, even under extreme environmental conditions with severe pollution
