Product Overview

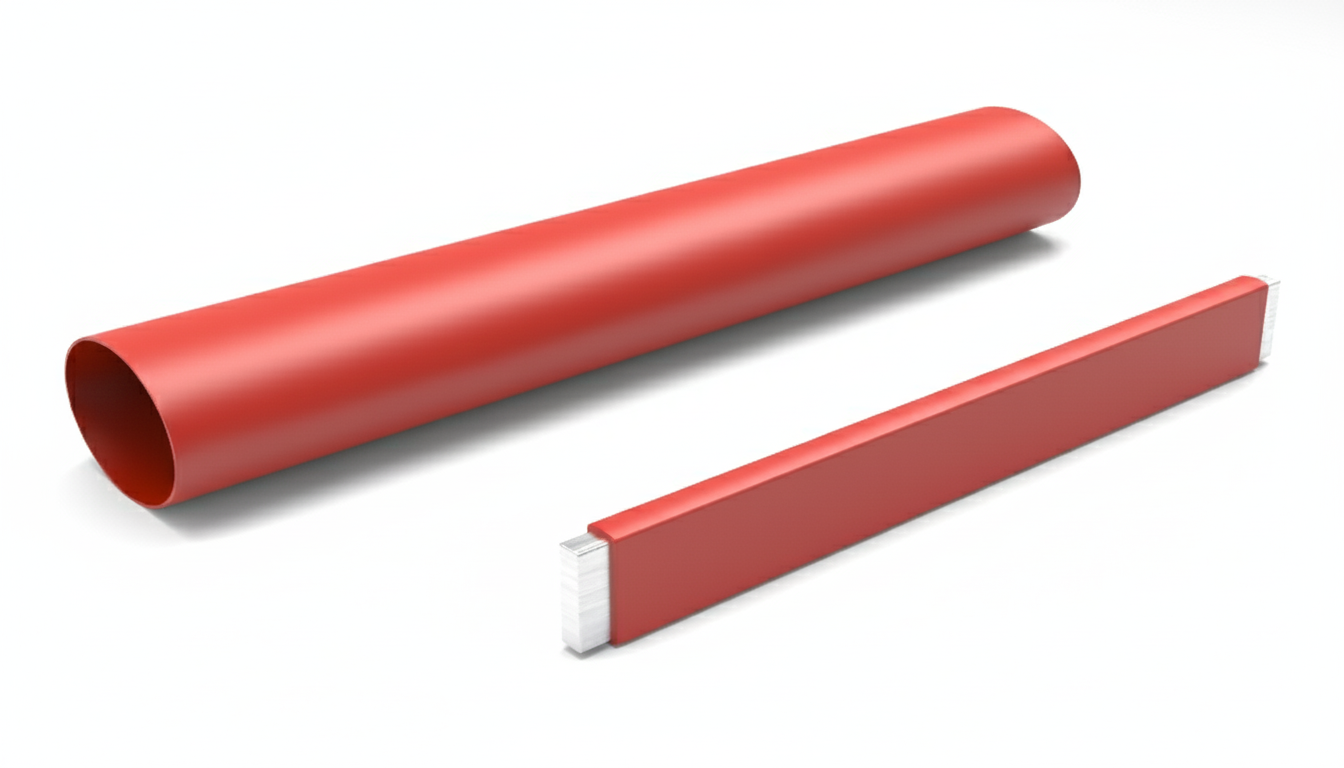

The COMPAQ CBIT Busbar Insulation Tubing is engineered to provide safe, space-efficient insulation for copper and aluminium busbars up to 66kV. Particularly effective in confined layouts, this tubing can be applied to both circular and rectangular busbar profiles, shrinking uniformly when heated to achieve the required minimum wall thickness. It can be installed quickly during large-scale production using an oven or on-site with a hot air gun or gas torch, making it suitable for both OEMs and field applications.
Manufactured from a halogen-free, flame-retardant polymer, the CBIT Series combines high dielectric strength, tracking resistance, and long-term durability. Its advanced material formulation reduces toxic and corrosive effects in fire situations, ensuring compliance with modern safety standards. By allowing reduced air spacing between busbars, it supports more compact switchgear cabinet design without compromising reliability. The COMPAQ CBIT Series delivers proven insulation performance, environmental safety, and installation flexibility for demanding industrial and utility power distribution systems.
Provides strong dielectric strength and tracking resistance for busbars up to 66kV.
Allows reduced air clearance between busbars, enabling more compact switchgear cabinet layouts.
Resistant to UV, weathering, and surface erosion for dependable indoor and outdoor performance.
Easy to shrink using an oven, hot air gun, or gas torch, suitable for both factory and field applications.
Retains performance properties under normal storage conditions, ensuring readiness for both immediate and future use.
| Parameter | Specification |
|---|---|
| Material | Cross-linked, halogen-free polyolefin |
| Shrink Ratio | Typically 2.5:1 to 3:1 (covers a wide range of busbar sizes) |
| Busbar Shapes | Suitable for circular and rectangular copper or aluminium busbars |
| UV Resistance | Stabilized against irradiation and weathering |
| Voltage Class | Up to 66 kV |
| Shrink Temperature | +120 °C to +200 °C (recommended heating range) |
| Dielectric Strength | > 20 kV/mm |
| Installation Method | Heat Shrink- Oven (factory) / Gas torch / Hot air gun |
| Operating Temperature | –40 °C to +105 °C |
Applications
Selection Criteria
To identify the correct kit configuration, kindly confirm the following project details:
01
Voltage class
02
Busbar size and shape
03
Required wall thickness
04
Colour preference (Red/Black)
Need Help?
Our experts are ready
Our experts are available for on-site support, remote
guidance and tailored engineering.
The CBIT Series is suitable for copper and aluminium busbars up to 66kV, ensuring reliable insulation and tracking resistance in medium and high voltage applications.
Yes. The CBIT Series is designed to shrink uniformly over both circular and rectangular profiles, maintaining consistent wall thickness after installation.
It can be installed during mass production using an oven or on-site using a hot air gun or gas torch, providing flexibility for OEMs and field engineers.
Yes. The tubing is manufactured from a halogen-free, flame-retardant polymer that minimizes toxic and corrosive gas emissions during fire, improving personnel and equipment safety.
It is designed for indoor and outdoor use, with strong resistance to UV exposure, weathering, and surface tracking in polluted or humid conditions.
Yes. By allowing reduced air clearances between busbars, the CBIT Series supports compact switchgear and confined-space installations without compromising safety.
When stored under normal conditions, COMPAQ CBIT tubing has an unlimited shelf life without loss of performance.
