Product Overview

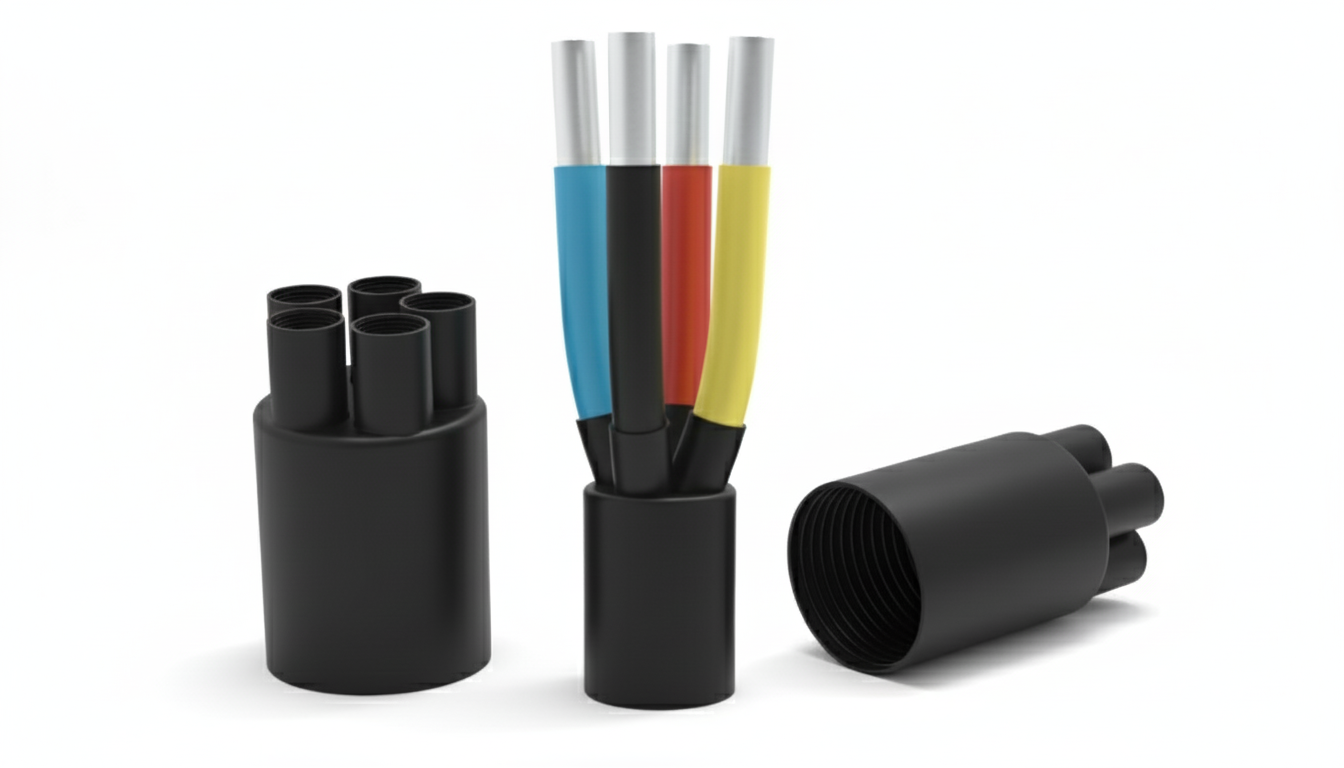

COMPAQ CLB Series Heat Shrink Cable Breakouts are designed to provide long-lasting sealing and mechanical protection for the crutch area of low voltage multicore cables up to 3.3kV. When heated, the breakout shrinks to its original compact form, ensuring a precise and secure fit across a wide range of cable sizes and accessories due to its high shrink ratio. The inner walls and finger areas are coated with hot-melt adhesive, which flows during installation to create a reliable, moisture-tight seal over diverse insulation materials used in energy cables.
Engineered for both indoor and outdoor terminations, COMPAQ breakouts are quick to install and proven to withstand harsh climates, UV exposure, and polluted environments. They are available in a broad selection of sizes for 2 core to 7 core cables, covering multiple cable diameters and applications. Manufactured from halogen-free, UV-stabilized materials, the CLB Series ensures environmental safety, extended shelf life under normal storage, and dependable performance throughout its service life.
Hot-melt adhesive lining ensures a permanent, moisture-tight barrier that protects against water ingress and extends service life.
Halogen-free, silicone-free, non-corrosive, and free from lead and aluminium, ensuring safety and environmental responsibility.
Provides excellent insulation properties and robust strength for reliable protection in low voltage applications.
Designed to maintain material properties under normal storage conditions and deliver durable performance in operation.
High shrink ratio allows a secure fit over different cable diameters and insulation types, including PVC, XLPE, Rubber, and PILC.
| Parameter | Specification |
|---|---|
| Color | Black (standard) |
| Material | Cross-linked polyolefin |
| shelf-life | Unlimited under normal storage conditions |
| Shrink Ratio | 3:1 |
| UV Resistant | Stabilized against UV radiation and outdoor weathering |
| Halogen Content | Halogen-free, silicone-free, non-toxic, non-corrosive |
| Chemical Resistance | Resistant to common fluids, oils, and environmental pollutants |
| Installation Method | Heat Shrink- Gas torch / Hot air blower |
| Operating Temperature | –40 °C to +105 °C |
| Adhesive Type and Type | Thermoplastic hot melt (Planar or Spiral) |
Applications
Selection Criteria
To identify the correct kit configuration, kindly confirm the following project details:
01
Voltage class (up to 3.3kV)
02
Cable core count (2C, 3C, 4C, 5C, 6C, 7C)
03
Outer dimensions of the cable crutch
04
Color preference (Black is standard)
Need Help?
Our experts are ready
Our experts are available for on-site support, remote
guidance and tailored engineering.
Cable breakout boots are used to seal and protect the crutch area where the cores of a multicore cable separate. They provide moisture resistance, mechanical protection, and insulation support for reliable cable terminations.
They are suitable for PVC, XLPE, Rubber, and PILC insulated cables, making them versatile for different network requirements.
The CLB Series is designed for low voltage applications up to 3.3kV, covering a wide range of multicore cable installations.
Yes. They are manufactured from UV-stabilized, halogen-free materials and are designed to perform reliably in outdoor, underground, and polluted environments.
When stored under normal conditions, COMPAQ breakout boots offer an extended shelf life without degradation in performance.
No special tools are required. They are heat-shrinkable and easy to install using standard heating equipment, ensuring a fast and consistent seal.
