Low Voltage Heat Shrink Terminations for XLPE/PVC/EPR Cables

Up to 1.2kV

Enquire Now Enquire Now

Product Overview

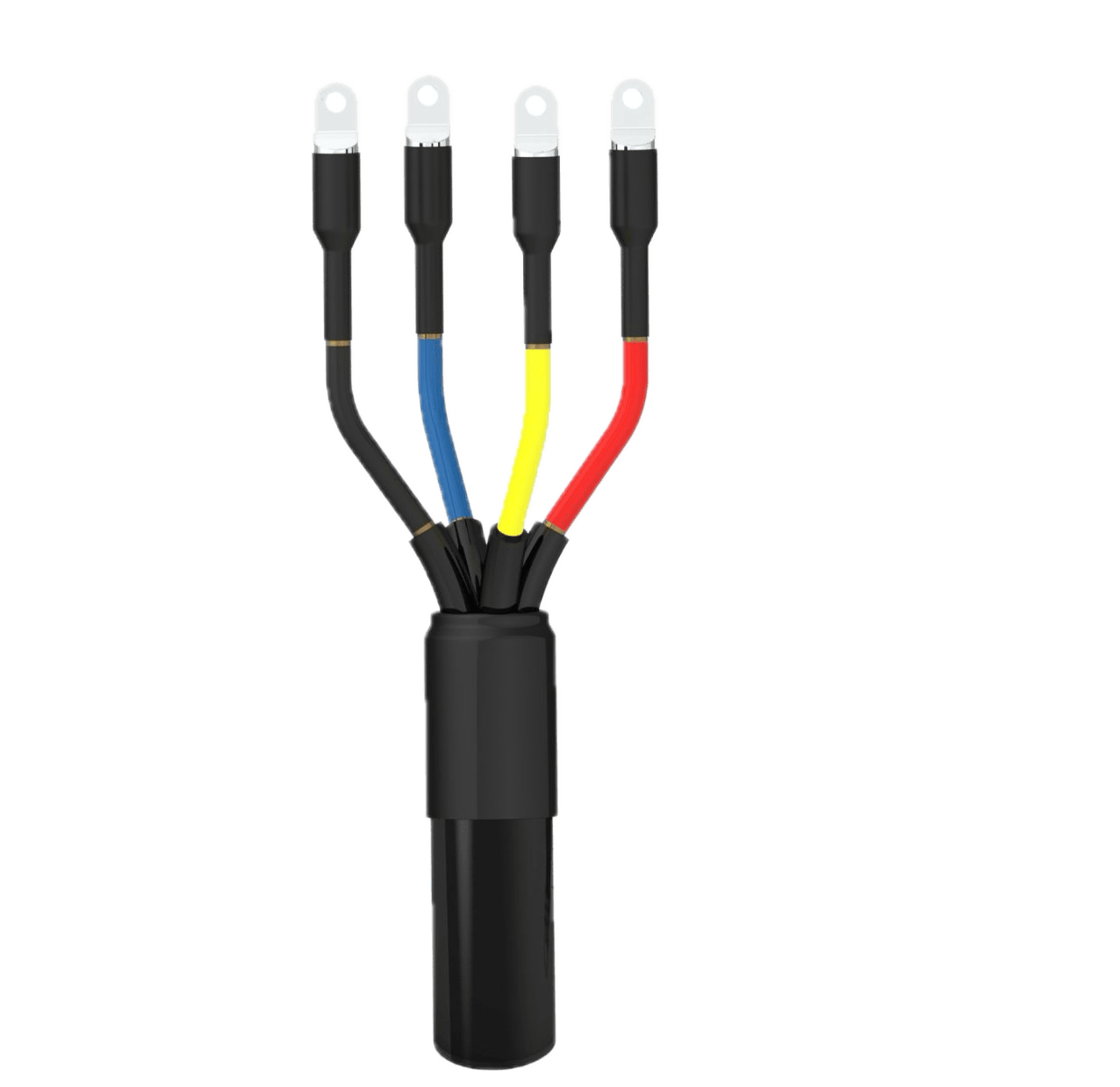

The CHLT-1 Series from COMPAQ INTERNATIONAL is a heat shrink termination kit developed for low voltage power cables insulated with XLPE, PVC, or EPR, rated up to 1.2kV. These kits offer a time-tested, field-proven solution for safe, durable, and efficient termination across a wide range of low voltage networks.

COMPAQ’s low voltage heat shrink terminations are manufactured using high-quality, non-tracking polymer materials, offering excellent mechanical strength and insulation performance. Designed for simplicity in the field, CHLT-1 kits can be installed using only a standard heat source—no special tools or equipment are required. With over 25 years of application success, these kits are trusted across industrial, infrastructure, and utility installations.

How Are We The Best

Product Benefits?

Reliable in Harsh Environments

Designed to withstand outdoor exposure, thermal variation, and pollution without degradation.

Field-Proven Material Quality

All components are manufactured from cross-linked, UV-resistant polymer tested for electrical endurance.

Quick and Simple Installation

The flame-shrink process ensures fast application, ideal for confined spaces and routine maintenance work.

Flexible Application Range

Available for a variety of cable types, sizes, and core configurations. Tailored kits available on request.

Mechanical Lug Compatibility

Compatible with both mechanical and compression-type lugs (lugs available separately).

Long-Term Service Stability

Proven performance across diverse sectors for over two decades.

Specifications

Technical Specifications

Parameter	Specification
Rated Voltage	Up to 1.2kV
Lug Compatibility	Mechanical and Compression-type lugs
Cable Construction	Armoured and Unarmoured
Conductor Material	Aluminium or Copper
Core Configuration	Single-core, multi-core (up to 4-core)
Installation Method	Requires standard heat source for shrink activation
Insulation Material	Non-tracking, UV-resistant cross-linked polymer
Compliance Standards	EN 50393, IS 13573-1
Indoor / Outdoor Use	Suitable for both applications
Cable Insulation Type	XLPE, PVC, or EPR

Choosing The Correct Kit

Applications

LV switchgear panels and feeder boxes
Industrial and commercial cable terminations
Infrastructure and facility wiring systems
Utility low voltage distribution networks
Renewable energy systems (below 1.2kV)
Panel boards and motor control terminations

Selection Criteria

To identify the correct kit configuration, kindly confirm the following project details:

System voltage (up to 1.2kV)

Number of cable cores

Conductor material and size

Armoured or unarmoured cable construction

Installation environment (indoor or outdoor)

Preferred connector type (mechanical or compression)

Need Help?
Our experts are ready

Our experts are available for on-site support, remote
guidance and tailored engineering.

FAQS

Frequently Asked Questions (FAQ)

The kits are suitable for XLPE, PVC, or EPR insulated low voltage cables up to 1.2kV.

Yes. CHLT-1 kits are designed to perform reliably in both indoor and outdoor environments, including areas exposed to sunlight, dust, and moisture.

No. Installation requires only a standard heat source such as a gas torch. No additional tools or crimping equipment are needed.

Yes. The CHLT-1 series is fully compatible with mechanical and compression lugs, which may be ordered separately.

Absolutely. All components are tested according to international standards and have demonstrated long-term reliability in practical applications for over 25 years.
