Product Overview

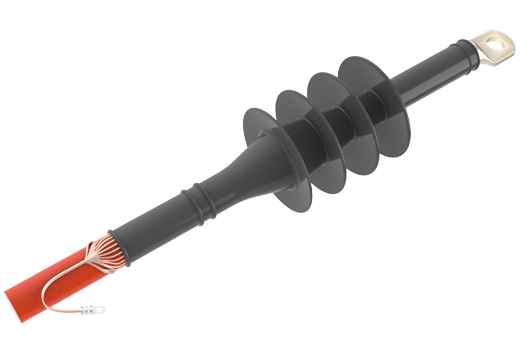

CCIT / CCOT Series from COMPAQ offers advanced cold shrink termination kits developed specifically for medium voltage XLPE and EPR insulated cables up to 42kV.
These kits utilize pre-expanded silicone rubber components, housed on removable plastic cores, allowing quick, flame-free installation without the need for heating tools. This not only simplifies on-site work but significantly reduces safety risks and project time.
The CCIT variant is suited for indoor environments such as switchgear or terminal boxes, while the CCOT version is designed for harsh outdoor conditions, providing additional protection against UV exposure, moisture ingress, and environmental contaminants.
Pre-expanded silicone components simplify installation, eliminating the need for heat sources or special tools, and enhancing on-site safety.
Built-in stress grading components ensure reliable electric field distribution, reducing the risk of partial discharge and insulation failure.
Manufactured from track-resistant, UV-stabilized silicone for excellent mechanical strength and long-term weathering performance.
Maintains a dry insulation surface even under wet or polluted conditions, significantly reducing leakage currents and enhancing reliability.
CCIT series is suitable for switchgear, panels, and enclosures, while the CCOT series is designed to withstand outdoor exposure, including UV, moisture, and temperature extremes.
Supports a wide range of cable constructions including single-core and three-core, armoured (SWA, AWA) and unarmoured types.
Fully compatible with both mechanical and compression lugs, facilitating on-site adaptability.
Reduces total labour time and cost, while maintaining uniform quality across multiple terminations.
Eliminates open flame requirements, making it suitable for installations in hazardous or restricted zones.
| Parameter | Specification |
|---|---|
| Material | High-performance pre-expanded silicone rubber |
| Conductor Types | Copper or Aluminium |
| Lug Compatibility | Compression or Mechanical (to be ordered separately) |
| Operating Voltage | Up to 42kV |
| Core Configuration | 1-core and 3-core |
| Armour Compatibility | SWA / AWA / Unarmoured |
| Cable Insulation Types | XLPE / EPR |
| International Standards | IEC 60502-4, HD 629.1, IS 13573-2 |
| Installation Environment | Indoor (CCIT) / Outdoor (CCOT) |
Applications
Selection Criteria
To identify the correct kit configuration, kindly confirm the following project details:
01
Voltage class
02
Number of cores
03
Conductor material and size
04
Cable construction (armoured/unarmoured)
05
Indoor or outdoor application environment
06
Connector preference (mechanical or compression)
Need Help?
Our experts are ready
Our experts are available for on-site support, remote
guidance and tailored engineering.
CCIT is suitable for indoor environments, such as panels and enclosures. CCOT is designed for outdoor or exposed areas where environmental sealing and UV resistance are essential.
Yes. COMPAQ’s cold shrink kits support SWA, AWA, and unarmoured cable types with appropriate earthing accessories.
No. The pre-expanded cold shrink bodies automatically shrink into place once the plastic core is removed—no flame or heat tools are necessary.
Yes, both mechanical and compression lugs are compatible and may be ordered separately as per conductor type and size.
Absolutely. COMPAQ cold shrink terminations are tested in accordance with IEC 60502-4, HD 629.1 and meet RoHS/REACH environmental directives.
