Product Overview

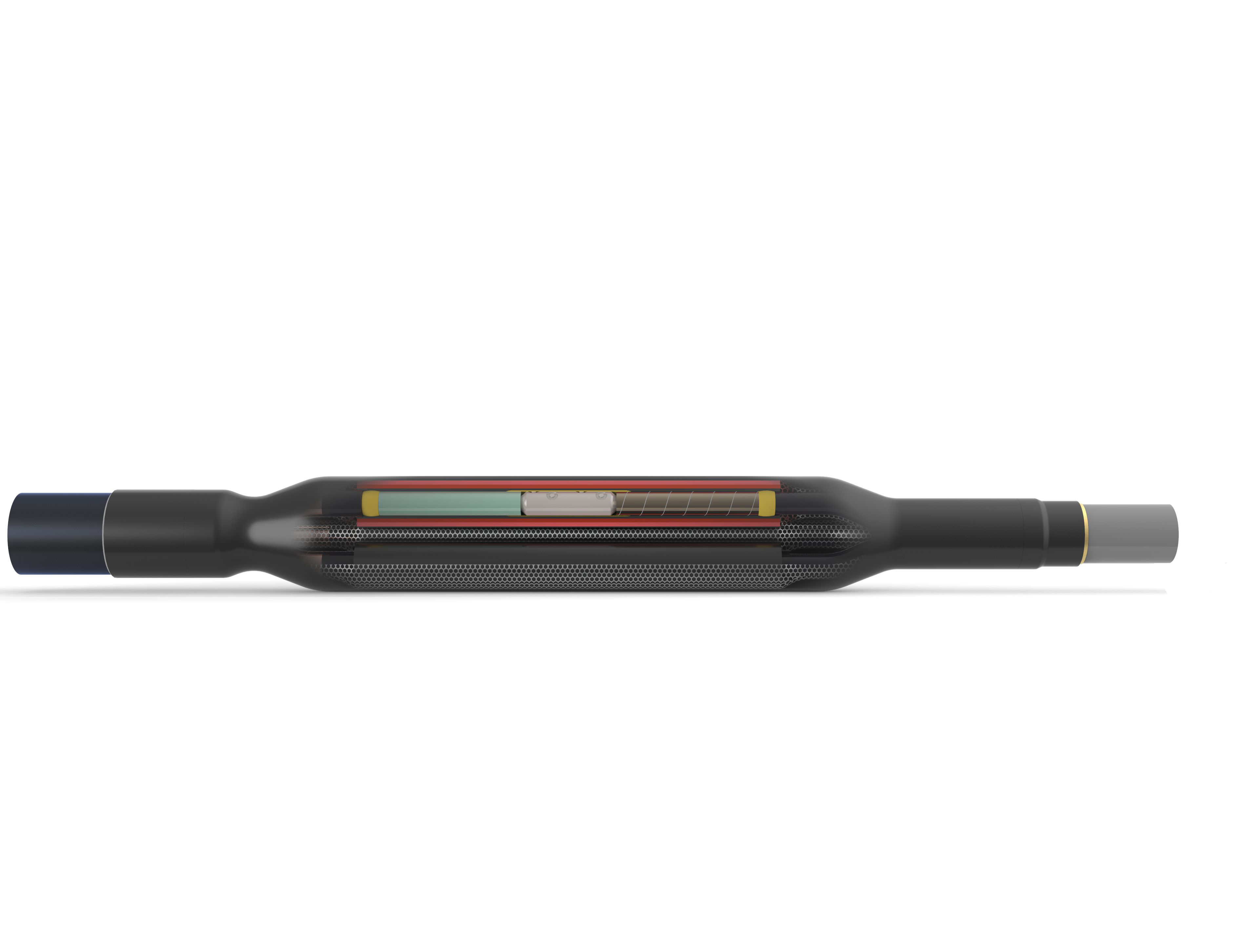

COMPAQ CHJ-Tx Heat Shrink Transition Cable Joints are designed for connecting three-core Paper Insulated Lead Covered (PILC) cables to three-core polymeric insulated cables such as XLPE or EPR in medium voltage distribution systems up to 36kV.
The joints utilize proven heat shrink technology to restore the electrical insulation, stress control, metallic screening and environmental sealing of the cable system while providing a reliable transition between legacy paper-insulated cable networks and modern polymeric cables.
Suitable for draining and non-draining PILC cables, the joints are fully screened, moisture sealed, directly buried and designed for underground distribution networks. They are compatible with both mechanical shear bolt connectors and compression connectors, making them suitable for utility, industrial and infrastructure applications.
Engineered to provide a reliable electrical and mechanical connection between Paper Insulated Lead Covered (PILC) and XLPE/EPR cables, making it ideal for network upgrades and cable replacement projects.
Manufactured using field-proven heat shrink technology that delivers dependable insulation, electrical stress control and long-term environmental sealing for medium voltage cable systems.
Advanced sealing components effectively prevent moisture ingress, ensuring long service life even in direct buried and water-prone installation environments.
Compatible with both mechanical shear bolt connectors and compression connectors, allowing installers to select the most suitable connection method for the application.
Specifically developed for underground medium voltage distribution systems and suitable for direct burial, ducts, tunnels and other demanding installation environments.
Manufactured from high-quality polymeric materials that provide excellent resistance to electrical tracking, UV exposure, thermal ageing and environmental stress, ensuring dependable performance throughout the service life of the cable network.
| Parameter | Specification |
|---|---|
| Cable Type | PILC to XLPE / EPR |
| Paper Cable | Belted, Screened, Draining & Non-Draining |
| Voltage Class | Up to 36kV |
| Polymeric Cable | XLPE, EPR |
| Moisture Sealing | Yes |
| Outer Protection | Heat Shrink Tubing |
| Conductor Material | Copper & Aluminium |
| Cable Configuration | Three Core |
| Electrical Screening | Yes |
Applications
COMPAQ CHJ-TX Transition Cable Joints are suitable for:
Selection Criteria
To identify the correct kit configuration, kindly confirm the following project details:
01
System voltage (11kV, 22kV or 33kV)
02
Cable construction on both sides (PILC and XLPE/EPR)
03
Cable size and conductor cross-sectional area
04
Conductor material (Copper or Aluminium)
05
Cable screen and armour configuration
06
Type of cable connector (Mechanical Shear Bolt or Compression)
07
Installation environment (Direct buried, duct or tunnel)
08
Applicable utility or project specifications
Need Help?
Our experts are ready
Our experts are available for on-site support, remote
guidance and tailored engineering.
A transition cable joint is designed to connect a paper insulated cable (PILC) to a polymeric insulated cable such as XLPE or EPR while maintaining electrical performance and mechanical integrity.
The CHJ-TX joint is suitable for three-core PILC (draining and non-draining) cables connected to three-core XLPE or EPR cables.
COMPAQ Transition Cable Joints are available for medium voltage applications up to 36kV, including 11kV, 22kV and 33kV systems.
Yes. The joint is fully screened, moisture sealed and designed for direct buried underground installations.
The joint kit accommodates both mechanical shear bolt connectors and conventional compression (crimp) connectors.
Yes. Suitable configurations are available for armoured and unarmoured cable constructions.
The required information includes system voltage, cable type, conductor size, conductor material, screen type, armour type and installation conditions.
